Waterjet Cut Graphic Panels
Project Brief
Anova was gearing up to enter the graphic panel market to capitalize on the purchase of CNC water jet machinery. The design team was tasked with producing a hand full of panel concepts. These panels will be used for privacy walls, facades, and fencing.
Ripple

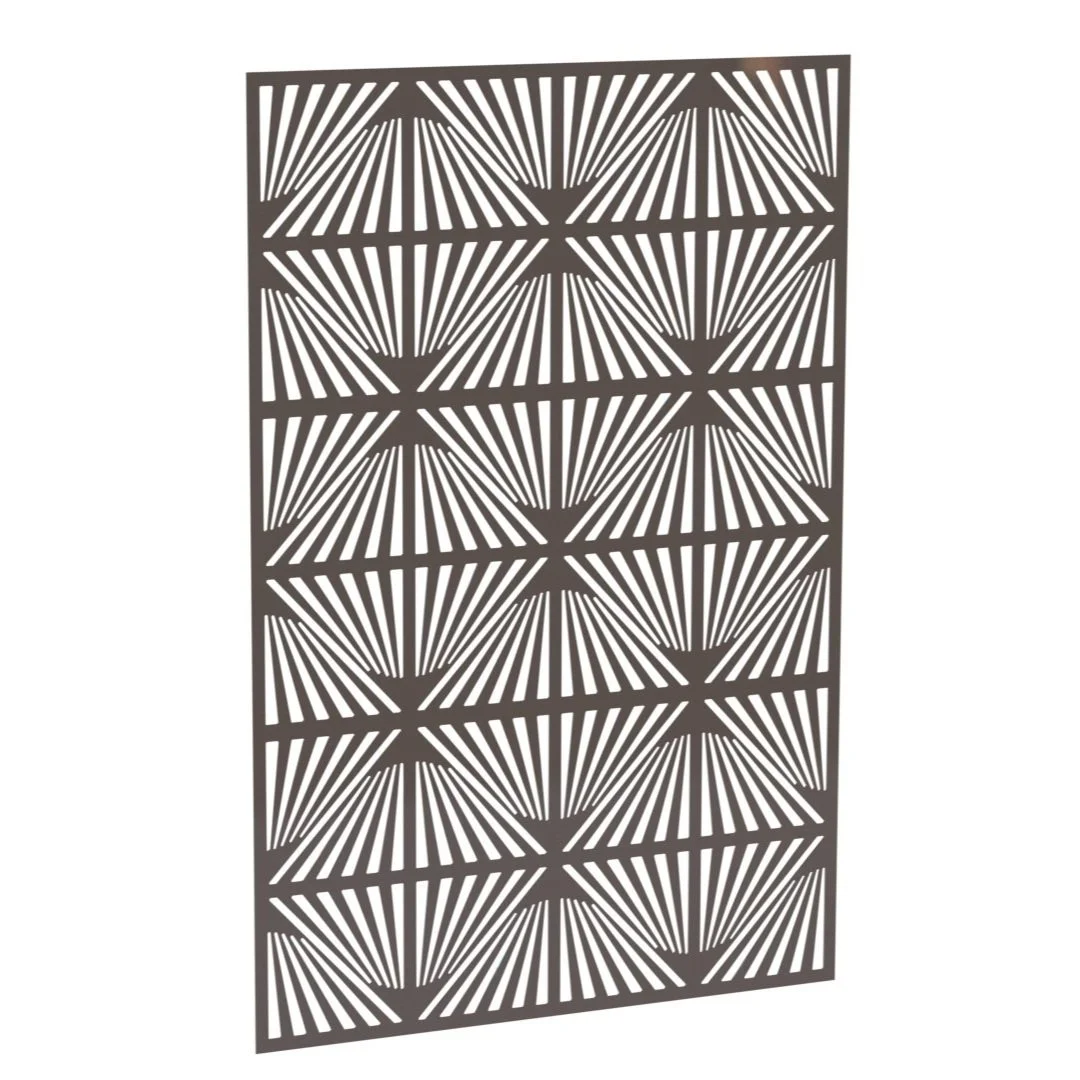

Single Panel Render
In past pattern explorations the landscape architecture leaned into repetitive patterns with cool optical effects. Ripple was designed to follow that trend. The perforations create an optical illusion that make the panels appear to have a 3 Dimension form. This is a versatile design that fits in well anywhere.

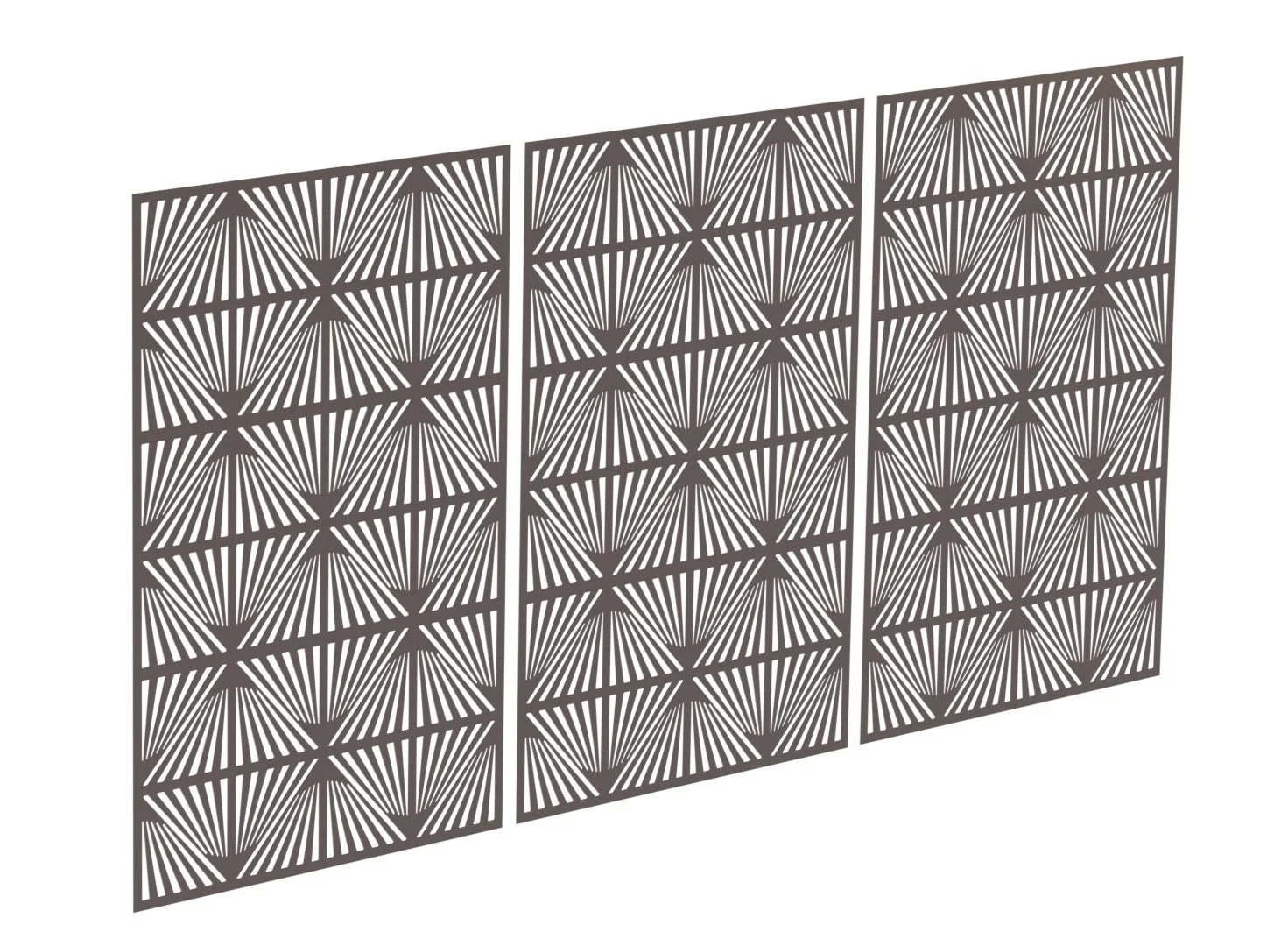

Multi panel Render
Ebb and Flow

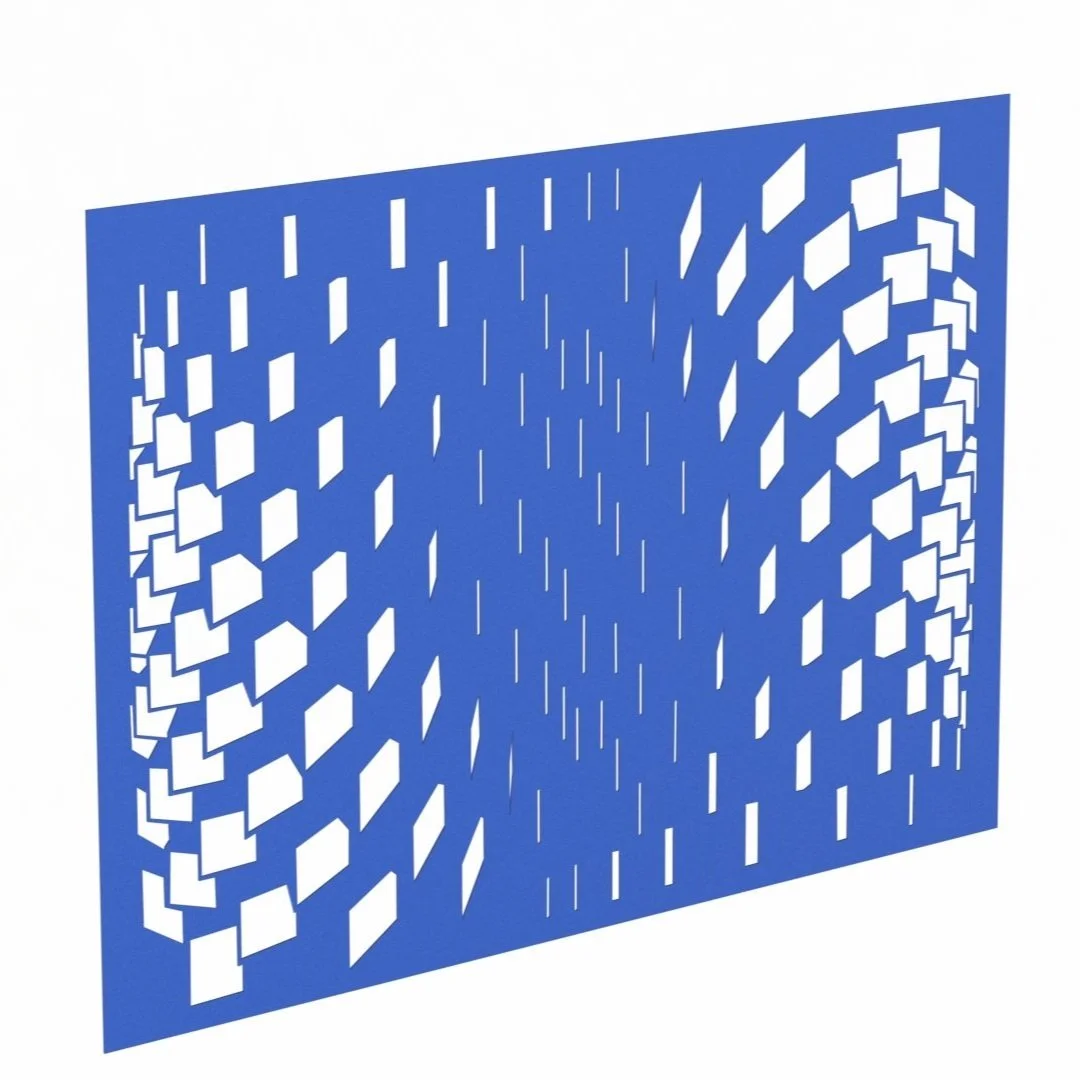

Single Panel Render
The pattern on this panel is all about intermitted motion with the pattern imitating the motion wave crashing against the shore and receding.

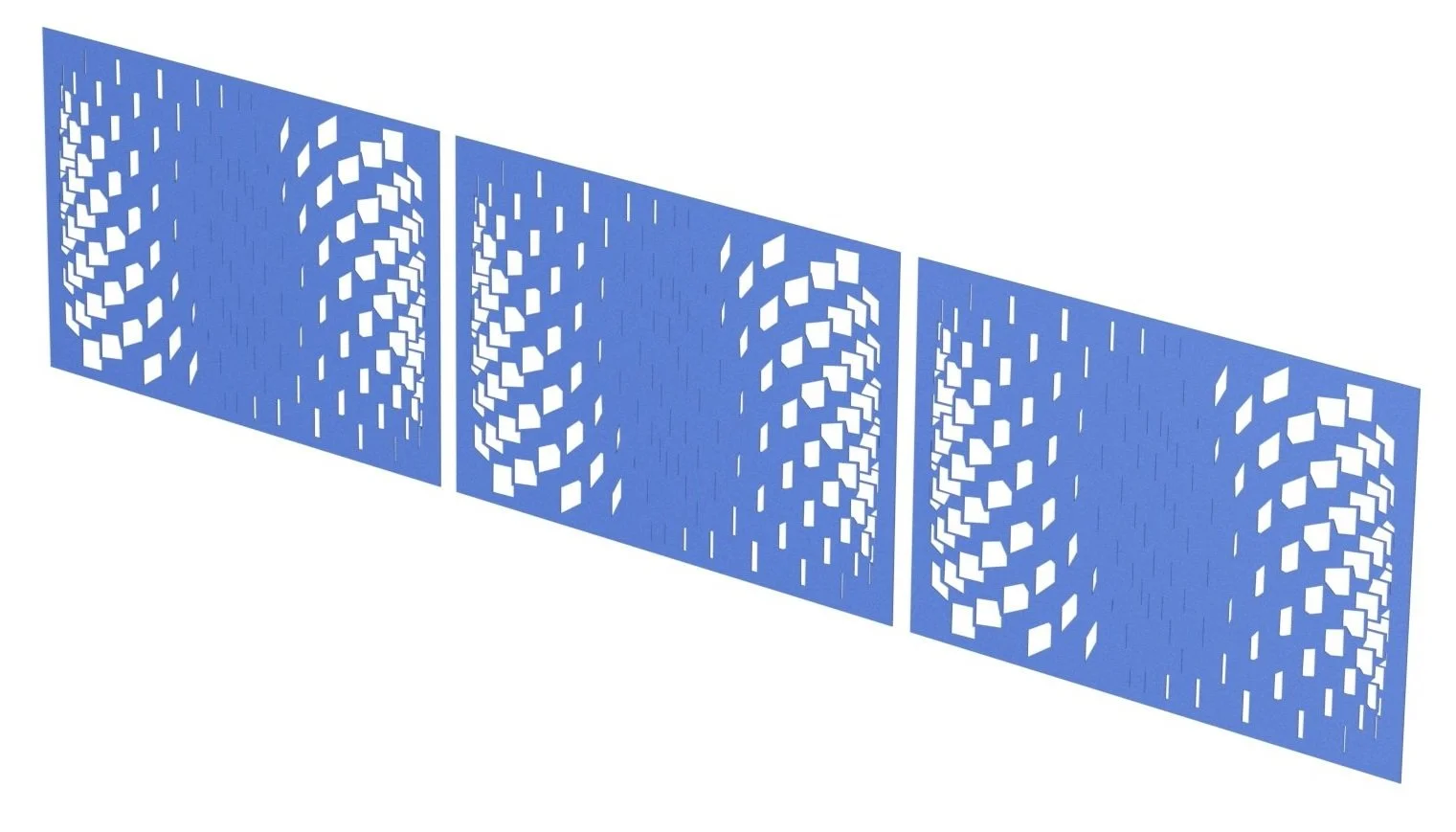

Multi panel Render
Active
Single Panel Render
A large part of Anova’s market is parks and recreation centers this concept was a single example of what active silhouettes could look like integrated with a simple horizontal slot pattern. The final product would allow planners to choose from multiple silhouettes and plain slotted panels.
Multi panel Render
Skyline

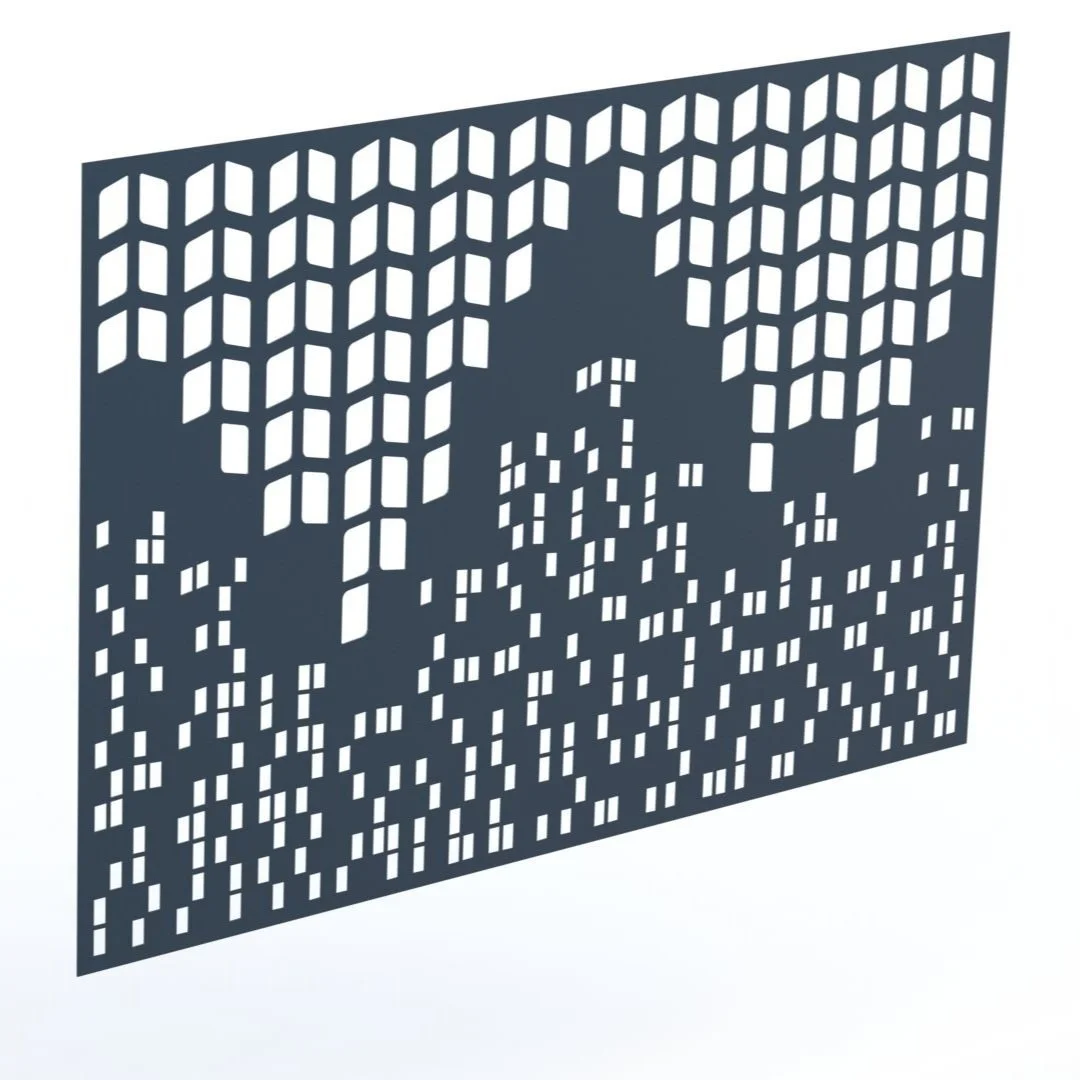

Single Panel Render
This panel concept was based on an abstracted skyline using perspective to convey the shapes of the skyscrapers. This concept was largely aimed at urban settings since most of Anova’s existing perforation patterns we nature themed.
Multi panel Render
